🧠 Introduction: Ek Chhoti Mistake, Bada Loss

Ek baar site pe coating approval ke time sab documents perfect the. Lab report bhi attached thi. Lekin jab actual structure install hua… 2–3 mahine baad rust aa gaya 😬

Reason?
👉 Test hua tha… par SOP follow nahi hua tha properly

Tab samajh aaya—ASTM B117 ka test karna enough nahi hai, usko correct SOP ke saath karna zaroori hai.

Simple line:
👉 “Test tabhi reliable hota hai jab process controlled ho.”

📘 What is SOP: Salt Spray (Fog) Test as per ASTM B117?

SOP (Standard Operating Procedure) is a step-by-step method to perform salt spray testing correctly as per ASTM B117 standard.

👉 Simple samjho:
“Same test har baar same tareeke se karna = SOP”

⚙️ Why SOP is Important in Salt Spray Testing?

• Ensures consistent results
• Avoids human errors
• Makes results acceptable in audits
• Helps in proper material selection

👉 “Without SOP, test result sirf guesswork ban jata hai.”

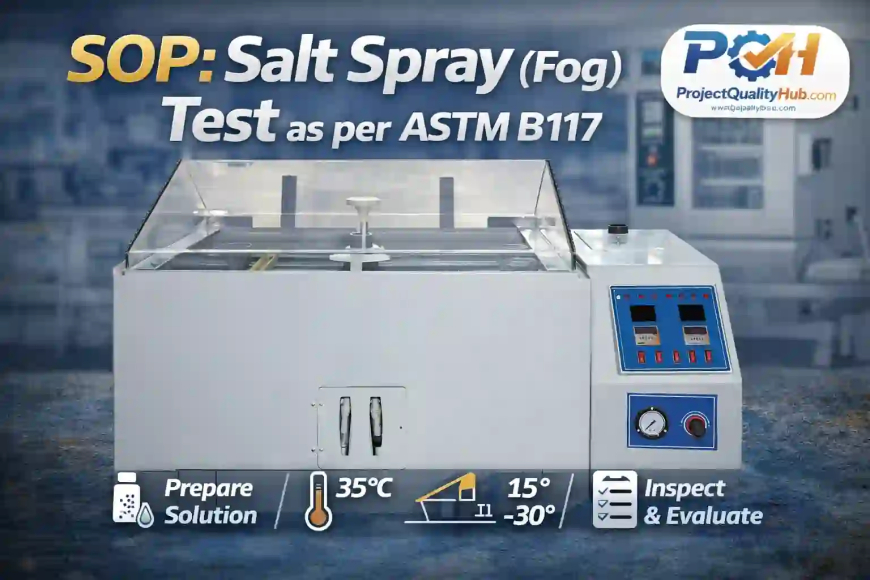

🧪 Equipment Required for ASTM B117 SOP

Basic setup includes:

• Salt Spray Chamber
• Air Compressor (oil-free)
• Solution Tank
• Fog Collectors
• pH Meter
• Temperature Controller

👉 “Equipment simple lagta hai, but control parameters hi game changer hote hain.”

🛠️ Step-by-Step SOP: Salt Spray (Fog) Test as per ASTM B117

Step 1: Prepare Salt Solution

• Use 5% NaCl solution
• pH maintain: 6.5–7.2
• Use clean (preferably distilled) water

👉 Tip: “Impure salt = wrong corrosion result”

Step 2: Set Chamber Conditions

• Temperature: 35 ± 2°C
• Ensure uniform fog

Step 3: Prepare Samples

• Clean surface properly
• Avoid touching with bare hands
• Coating fully cured hona chahiye

Optional:

• Scratch (scribe) for coating test

Step 4: Place Samples Correctly

• Angle: 15° to 30°
• No contact between samples
• Full fog exposure

👉 “Arrangement bhi science hai, random placement nahi”

Step 5: Start Test

• Start compressor (oil-free air)
• Generate salt fog
• Maintain continuous operation

Test duration:

• 24 hrs / 48 hrs / 96 hrs / 500+ hrs

Step 6: Monitor Daily

Record:

• Temperature
• pH
• Fog collection rate
• Salt concentration

👉 “Jo record nahi hua, woh test hua hi nahi—auditor ka rule”

Step 7: Post-Test Inspection

• Remove samples carefully
• Wash with clean water
• Dry immediately

Check:

• Rust
• Blistering
• Coating failure

Step 8: Evaluation of Results

Use:

• Visual inspection
• ASTM D1654 (for coatings)

👉 Important:
“ASTM B117 pass/fail define nahi karta—interpretation engineer ka kaam hai.”

🏭 Practical Example (Real Industry Case)

Ek project mein do coatings test kiye gaye:

• Coating A → Failed at 120 hrs
• Coating B → Passed 500 hrs

👉 SOP strictly follow kiya gaya tha

Final result:
✔ Correct coating selection
✔ Long-term durability
✔ Client satisfaction

👉 “Proper SOP = confident decision”

✅ Advantages of Following SOP

✔ Accurate results
✔ Repeatability
✔ Audit compliance
✔ Better quality control
✔ Reduced failure risk

❌ Disadvantages / Limitations

✖ Time-consuming
✖ Requires skilled operator
✖ Lab condition ≠ real environment
✖ Equipment cost high

⚠️ Common Mistakes in ASTM B117 SOP

❌ Using tap water instead of clean water
❌ Ignoring pH range
❌ Improper sample cleaning
❌ Wrong fog rate
❌ Interrupting test

👉 “Small error = big wrong conclusion”

🤯 Common Myths

❌ “500 hours means 5 years life”
✔ No direct relation

❌ “Salt spray test is enough”
✔ Needs multiple tests

💡 Expert Tips (From Real Experience)

✔ Always calibrate instruments
✔ Maintain chamber cleanliness
✔ Use control sample
✔ Don’t overload chamber
✔ Cross-check fog rate regularly

👉 “Discipline in lab = reliability in field”

🔚 Conclusion: SOP is the Backbone of ASTM B117 Test

SOP: Salt Spray (Fog) Test as per ASTM B117 is not just a procedure—it’s the backbone of reliable corrosion testing.

Agar aap engineer ho ya student, toh yaad rakho:
👉 “Correct SOP follow karoge toh result pe trust kar sakte ho.”

❓ FAQs

1. What is SOP in ASTM B117 test?

It is a step-by-step procedure to perform salt spray testing correctly.

2. Why is SOP important in salt spray testing?

It ensures accurate, repeatable, and audit-compliant results.

3. What is the temperature in ASTM B117 test?

35 ± 2°C.

4. What is the pH range for salt solution?

6.5 to 7.2.

5. How long is ASTM B117 test?

It can range from 24 hours to 1000+ hours.

6. Does ASTM B117 define pass or fail?

No, it depends on evaluation criteria.
